Description

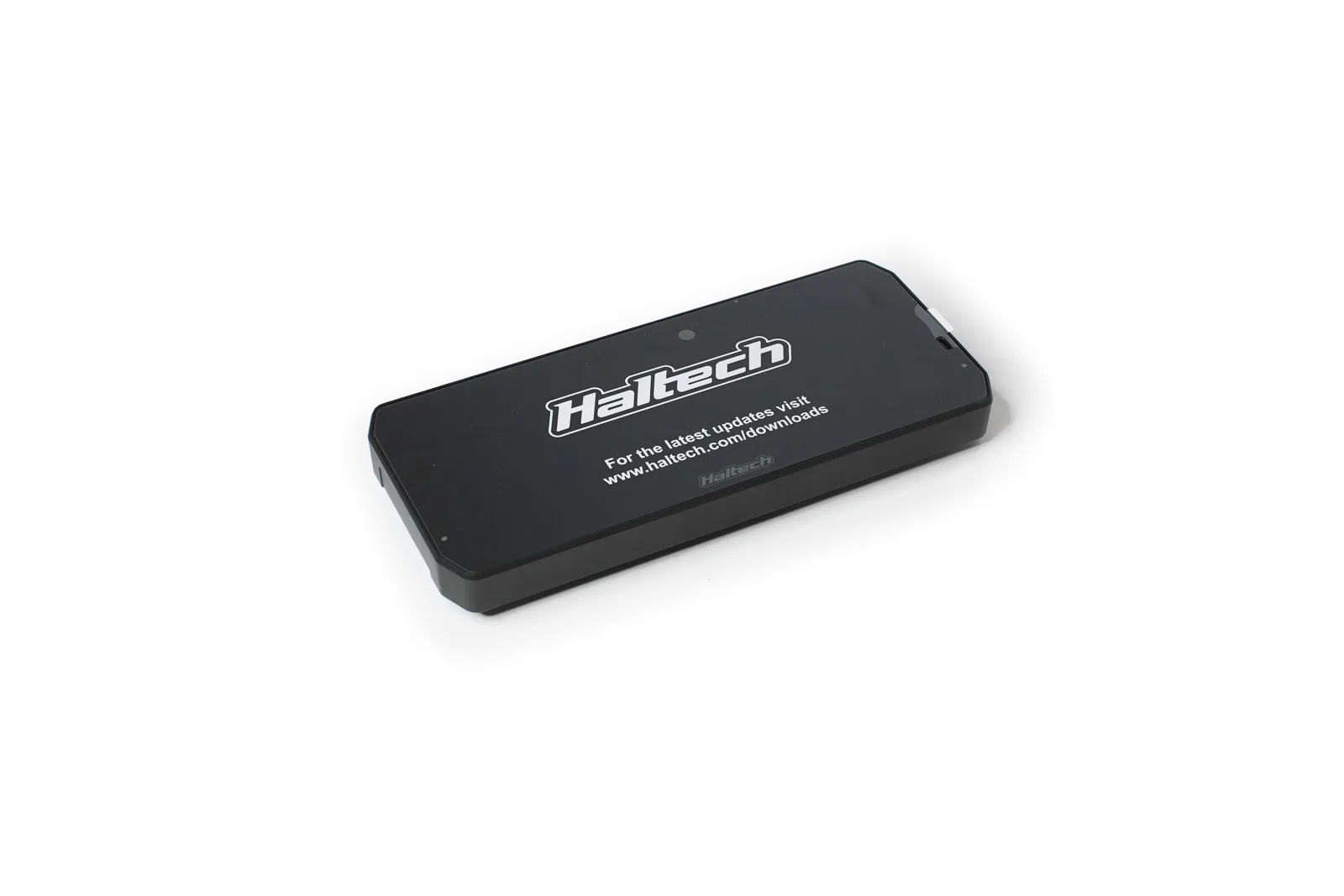

Haltech UC-10 Display Dash
The Haltech UC-10 is a full-color digital display dash designed to provide real-time engine data, driver alerts, and system status while also expanding the input capability of a Haltech ECU. Built for performance street and motorsport applications, the UC-10 combines a high-resolution display with integrated data acquisition, making it both a driver interface and a functional ECU expansion module.
The 10-inch screen is fully configurable, allowing custom layouts, colors, and pages to display RPM, temperatures, pressures, lambda, fuel data, warnings, and more. Data is received via CAN communication from supported Haltech ECUs, ensuring fast and reliable updates. User-defined warning limits can trigger on-screen alerts to help protect the engine during aggressive driving or competition use.
Beyond display functionality, the UC-10 can be used to expand available ECU inputs when a Haltech unit runs out of spare channels. The dash includes multiple configurable sensor inputs, allowing additional sensors to be wired directly to the UC-10 and transmitted to the ECU over CAN. This makes it possible to add sensors such as fuel pressure, oil pressure, temperature sensors, or custom 0–5V inputs without upgrading the main ECU.
The UC-10 provides up to 8 configurable 0–5V analog voltage inputs, along with digital inputs, enabling it to function as a practical expansion solution in complex builds. Expansion pins are included to support custom wiring and sensor integration.
Housed in a slim motorsport-grade enclosure, the UC-10 is well suited for custom dashboards, race interiors, and modernized street builds where both visibility and data capability matter.

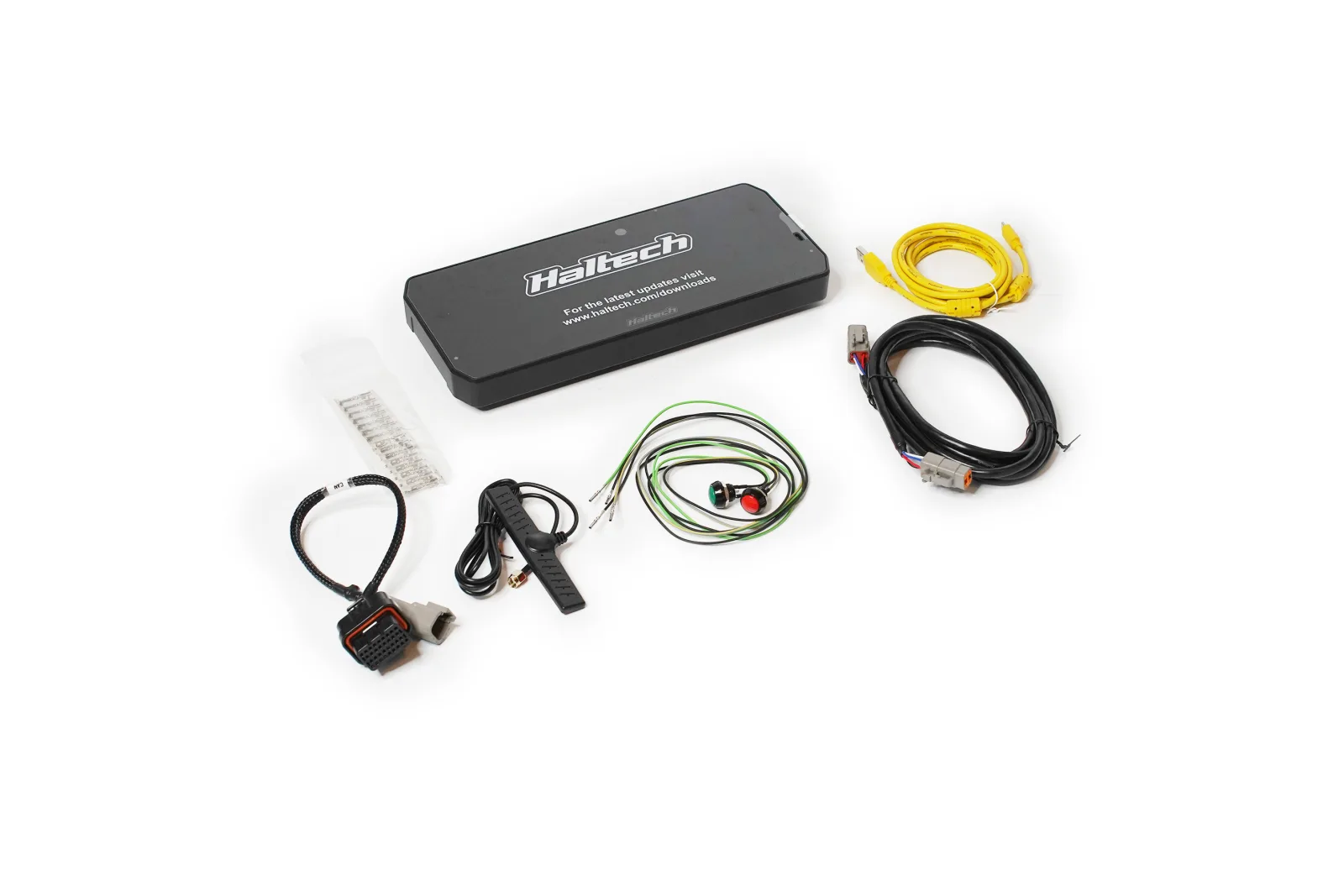

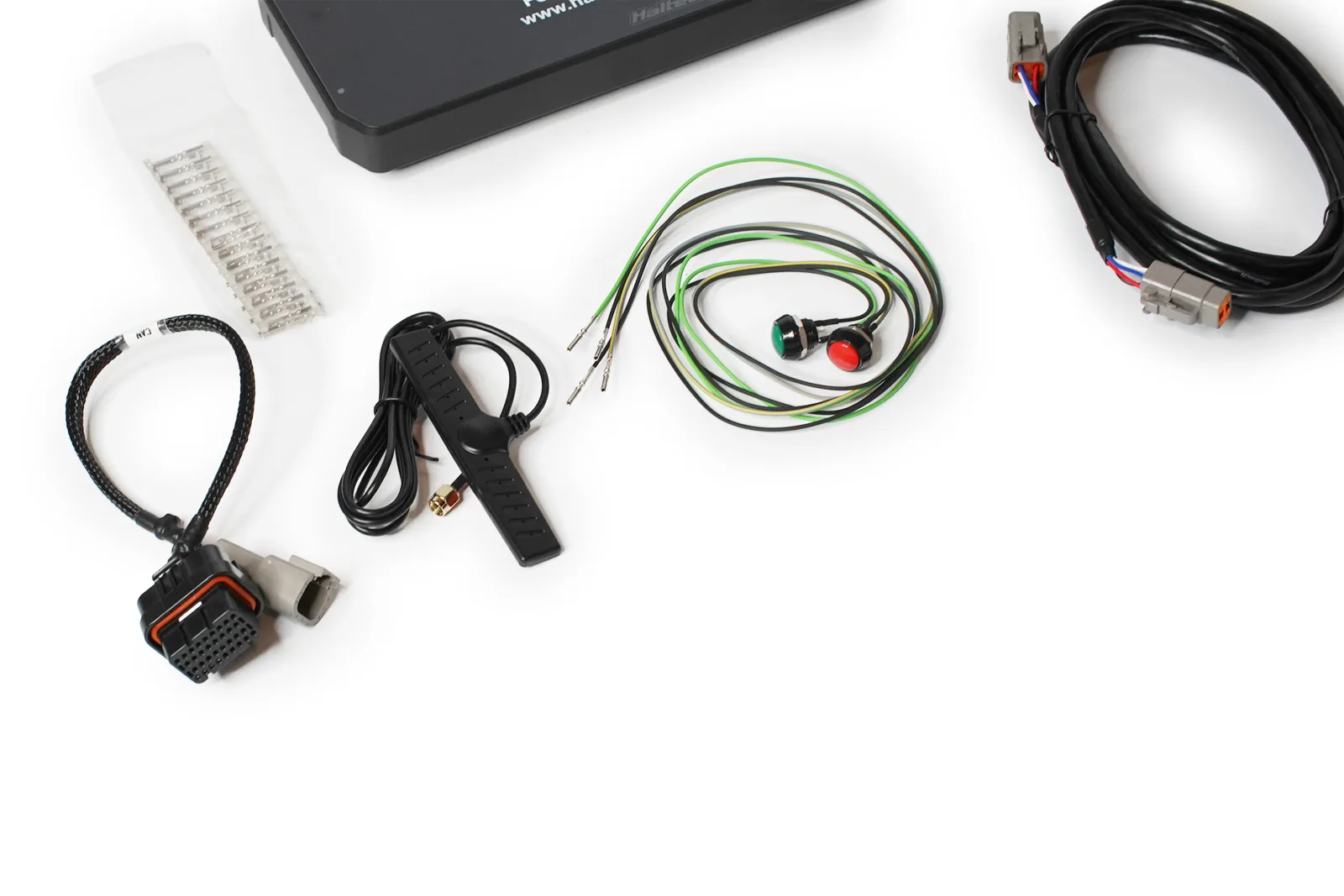

Included
UC-10 display unit
Primary wiring harness
Wi-Fi antenna
Two external buttons
Expansion pins
Compatibility
Designed for use with supported Haltech ECUs via CAN communication. ECU compatibility should be confirmed prior to installation.
Part number
UC-10
