Toda Racing B16/B18C Spec A Camshaft Set – Intake & Exhaust

Description

Toda Racing B16 Spec A Camshaft Set – Intake & Exhaust

The Toda Racing B16 Spec A camshaft set is designed as a true step up from OEM camshafts while preserving factory-level drivability and reliability. This is a drop-in cam upgrade that delivers stronger VTEC engagement, improved airflow at high rpm, and a broader usable powerband without requiring upgraded valve springs or valvetrain modifications.
Compared to factory Honda camshafts, the Spec A profile significantly increases VTEC lobe duration and lift, allowing the engine to breathe more efficiently once on the high cam. This results in stronger pull through the mid-range and noticeably better power carry toward redline. Unlike more aggressive cam profiles, Toda retains an OEM-like low-cam profile, ensuring smooth idle, predictable part-throttle response, and excellent street manners. Performance gains are focused on the VTEC lobe rather than compromising daily drivability.

Camshaft specifications

Intake cam
Low cam (non-VTEC): 220° duration / 6.0 mm lift
High cam (VTEC): 290° duration / 11.6 mm lift
Center (lost motion): 240° duration / 9.0 mm lift
Exhaust cam
Low cam (non-VTEC): 220° duration / 5.5 mm lift
High cam (VTEC): 280° duration / 11.2 mm lift
Center (lost motion): 240° duration / 8.5 mm lift
The retained 220° low-cam duration is a key reason this cam set does not require upgraded valve springs and maintains OEM-level drivability off-VTEC.

OEM Type R cam comparison

OEM B18C5 / B16B Type R cams (advertised values)
Intake cam
High cam: approximately 240–243° duration / ~11.5 mm lift
Exhaust cam
High cam: approximately 235° duration / ~10.5 mm lift
When compared directly, the Toda Spec A cams offer a significant increase in duration and lift on the VTEC lobe, translating to improved airflow and higher-rpm efficiency while still retaining safe valvetrain operation with factory components.

Compatible VTEC cylinder heads

B16A
B16B
B17A
B18C (GSR and Type R variants)

Included
Intake camshaft
Exhaust camshaft

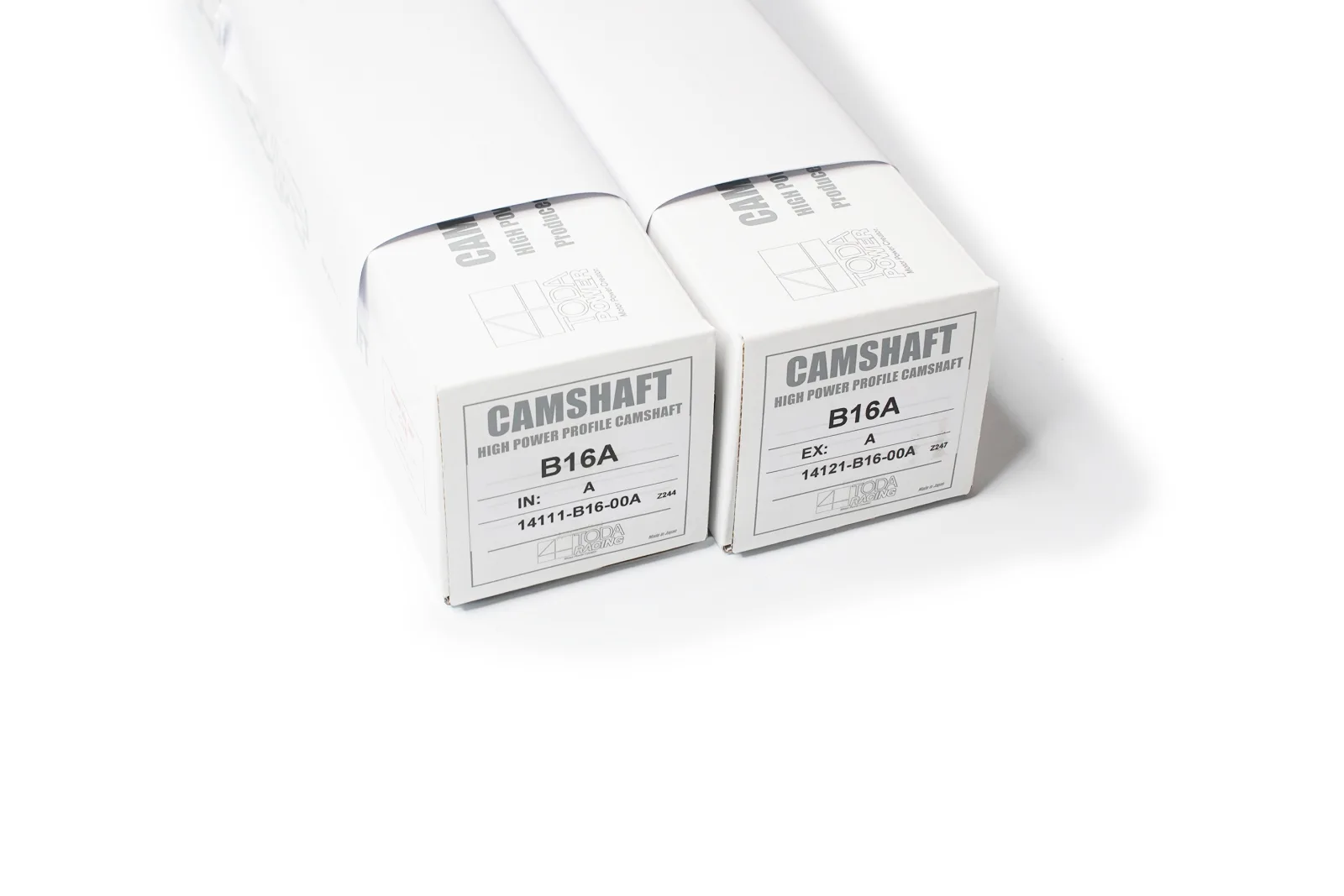

Part numbers

Intake cam: 14111-B16-00A
Exhaust cam: 14121-B16-00A
