Description

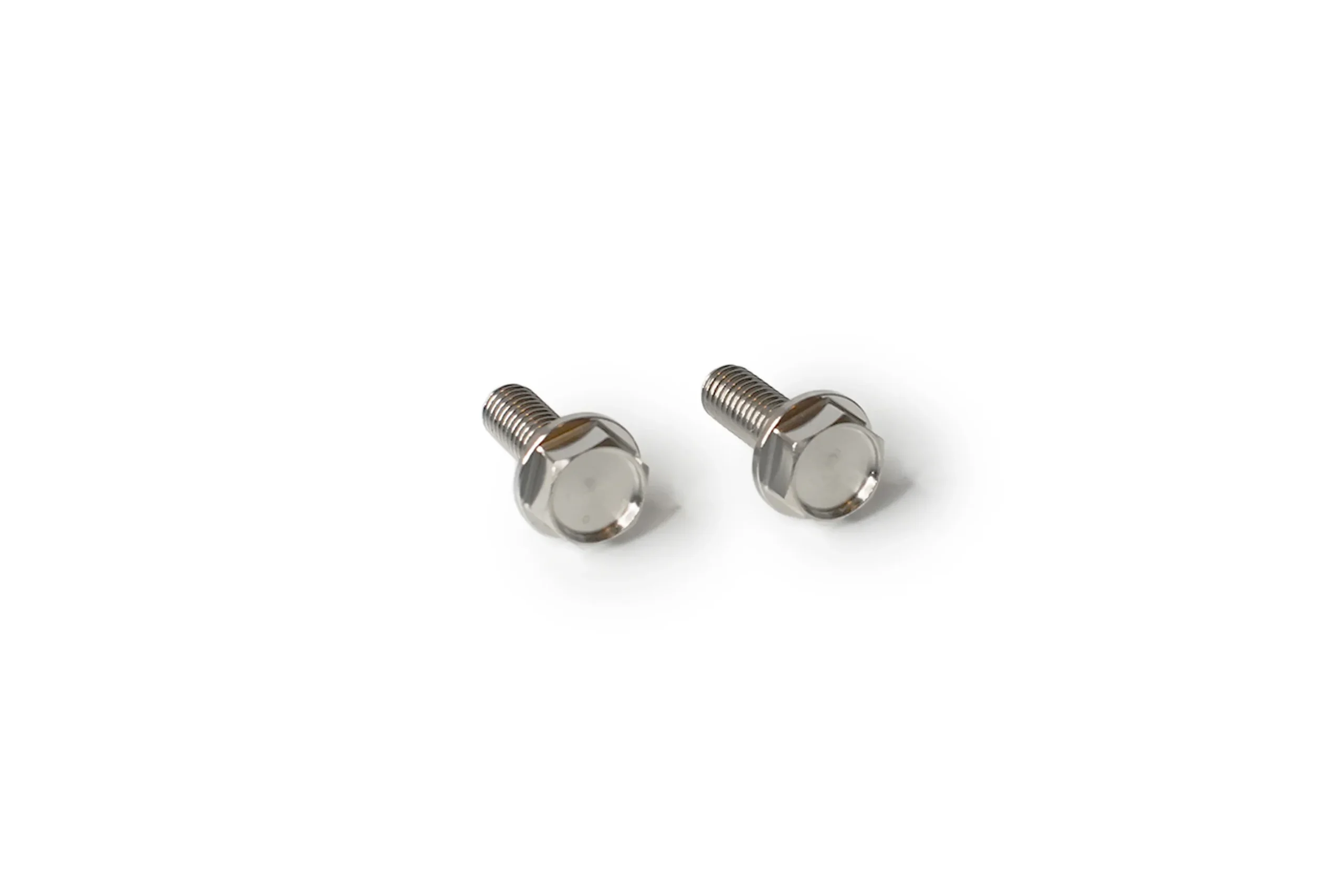

Grade 5 titanium replacement hardware for the fuel cap, designed in house and machined from solid bar with rolled threads.
Material
Ti-6Al-4V Grade 5
Strength equivalent
Class 9.8, 900 MPa
Weight
About 44% lighter than steel
Threads
Rolled
In the kit

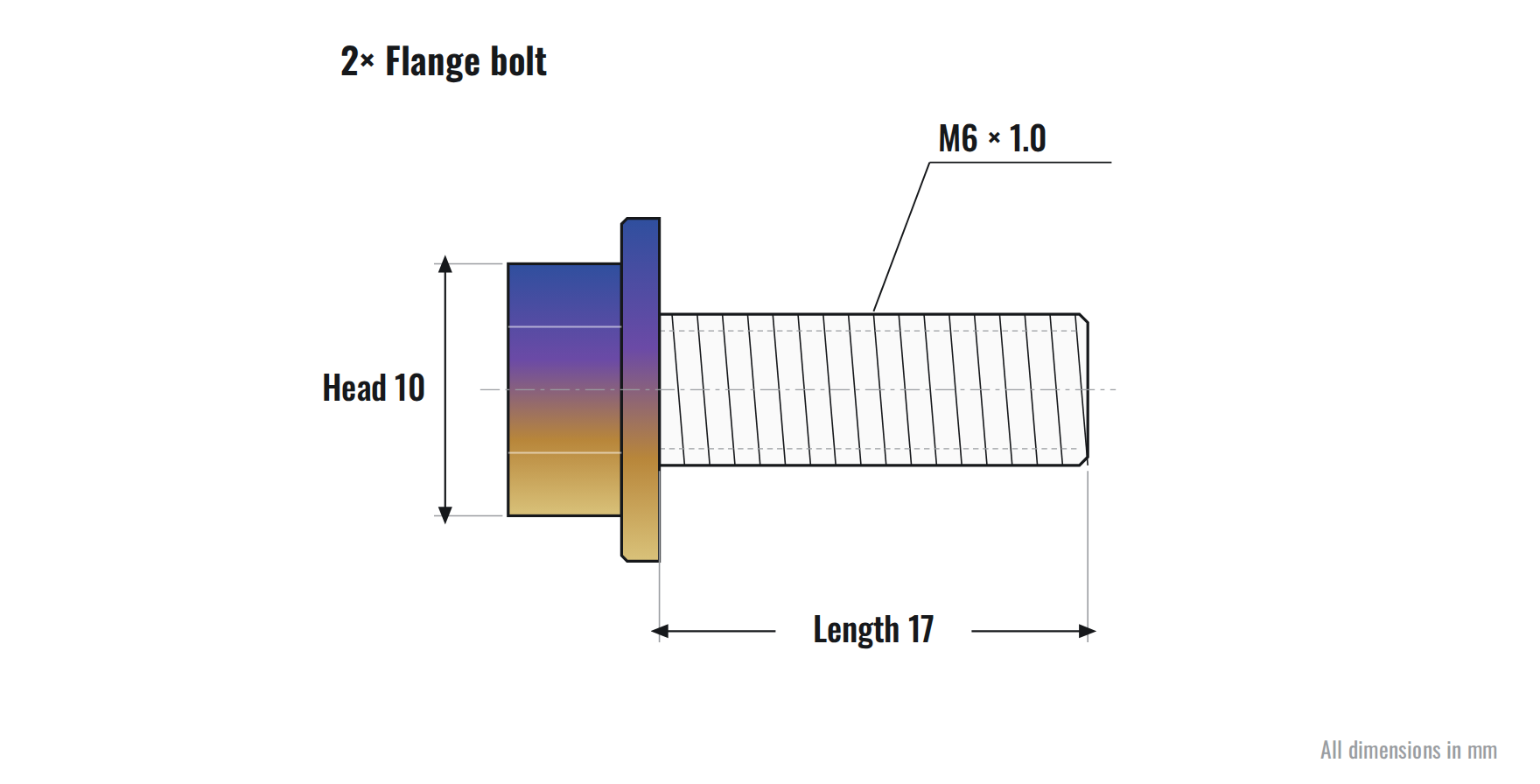

2×
Flange bolt
M6 × 1.0, 17mm body length, fully threaded, 10mm head
Installation
Tef-Gel is recommended on all threads and contact surfaces. Titanium will gall and cold-weld to aluminum if installed dry. When using Tef-Gel or any thread lubricant, torque to the factory specification x 0.8 to achieve the correct clamp load.
Factory torque
× 0.8
with Tef-Gel
Fitment
Civic
92-95, 96-00
Integra
94-97, 98-01
Racing use only
This product is intended for racing use only and is not an OEM replacement. Titanium fasteners have a higher fatigue rate than factory steel hardware and should be inspected regularly. Titanium bolts can back out without the use of a spring washer. Spring washers are not included to save weight, as these products are intended for racing use. Racing History Company takes no responsibility for failures, damage or injury resulting from the use of this product.
There are no reviews yet.
