Description
Grade 5 titanium replacement hardware for the engine bay ECU mounting, designed in house and machined from solid bar with rolled threads.

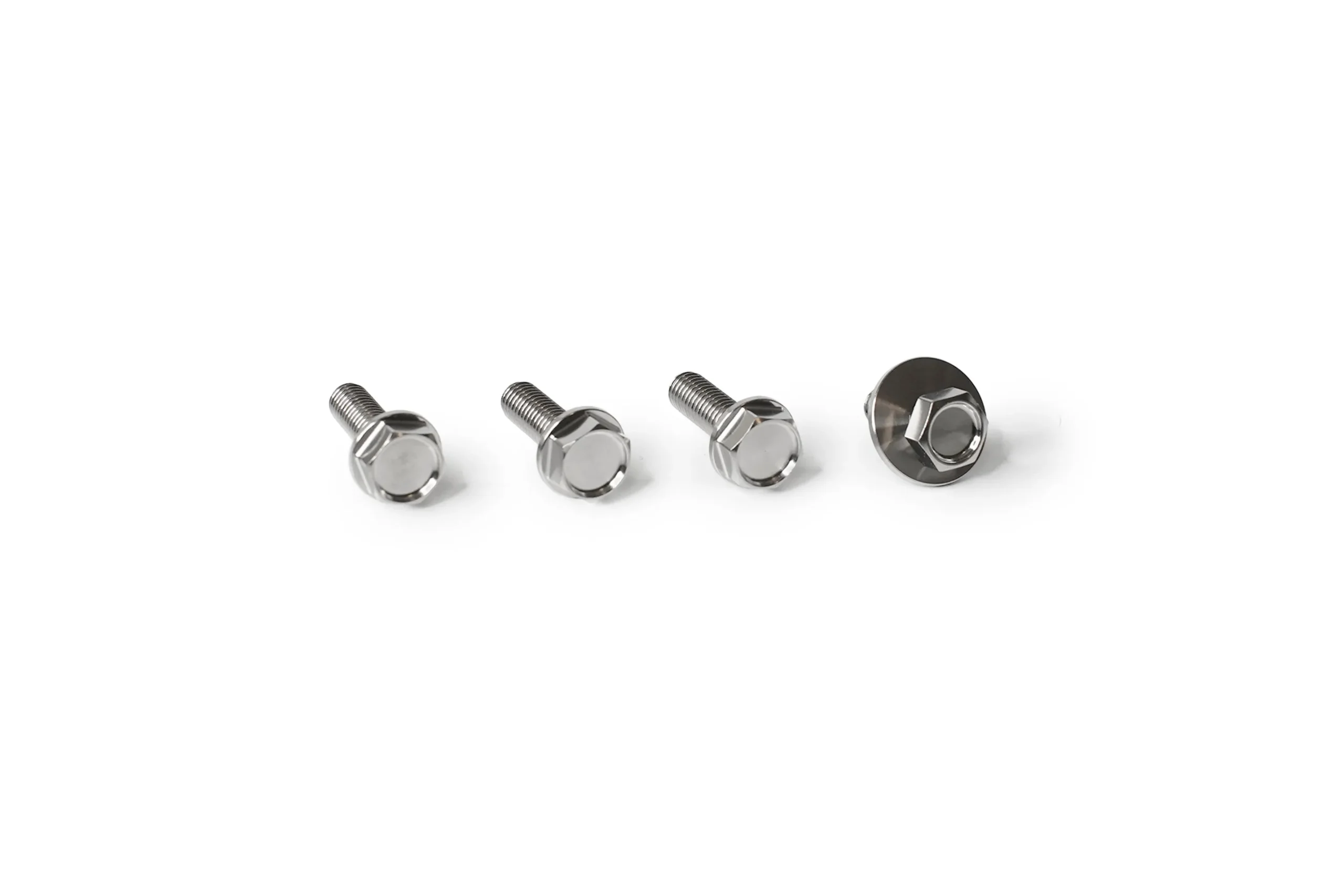

Kit Contents:
3x Flange Bolt, M6 x 1.0, 20mm body length, fully threaded, 10mm head
1x Hex Bolt, M6 x 1.0, 16mm body length, fully threaded, 10mm head
1x Flat Washer, M6, 17.75mm OD
Material: Grade 5 Titanium (Ti-6Al-4V)
Strength Equivalent: Class 9.8 steel (900 MPa tensile)
Weight: approximately 44% lighter than equivalent steel hardware
Installation: Tef-Gel is recommended on all threads and contact surfaces. Titanium will gall and cold-weld to aluminum if installed dry. When using Tef-Gel or any thread lubricant, torque to the factory specification x 0.8 to achieve the correct clamp load.
Disclaimer: This product is intended for racing use only and is not an OEM replacement. Titanium fasteners have a higher fatigue rate than factory steel hardware and should be inspected regularly. Titanium bolts can back out without the use of a spring washer. Spring washers are not included to save weight, as these products are intended for racing use. Racing History Company takes no responsibility for failures, damage or injury resulting from the use of this product.
Fitment: 92-95 Civic, 96-00 Civic, 94-97 Integra, 98-01 Integra.
