Haltech Elite 1500 – ECU Only

Description

Haltech Elite 1500 – ECU Only

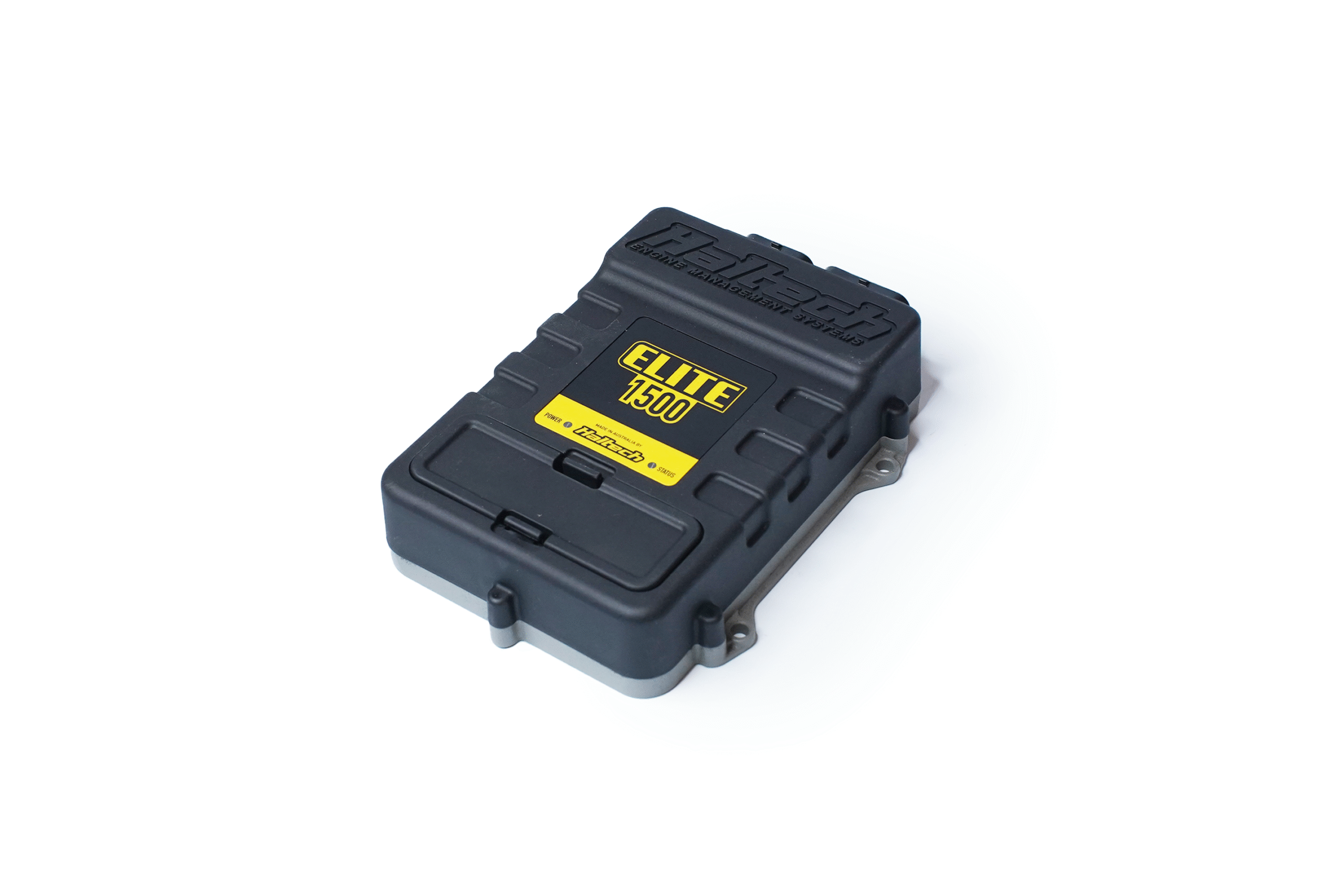

The Elite 1500 is a two-connector stand-alone ECU designed for 4-cylinder or 2-rotor engines. It provides advanced control features with a wide range of inputs and outputs for flexible configuration.

Inputs & Outputs

• 4 x Fuel injection outputs

• 4 x Ignition outputs

• 12 x Digital outputs

• 10 x Analog voltage inputs

• 4 x Synchronised pulse inputs

• 3 x Dedicated inputs (knock, ignition switch, onboard 4-bar MAP sensor)

• 2 x Engine position inputs with extensive trigger pattern support

Control Functions

• Drive-by-wire throttle control

• Variable camshaft control (up to 4 cams)

• Dual knock detection

• Closed-loop boost control

• Closed-loop idle control

• Flex-fuel capability

• Engine protection strategies

Expansion & Connectivity

• Dual CAN bus for dash displays, wideband controllers, I/O expanders, and other Haltech modules

• USB communication for tuning with Haltech NSP software

• Internal data logging plus external USB logging support

Specifications

• Recommended for 4-cylinder or 2-rotor applications

• Waterproof IP67 housing (with proper USB cap fitted)

• High-resolution mapping with per-cylinder trims

• Supports gasoline, ethanol, methanol, and flex-fuel blends

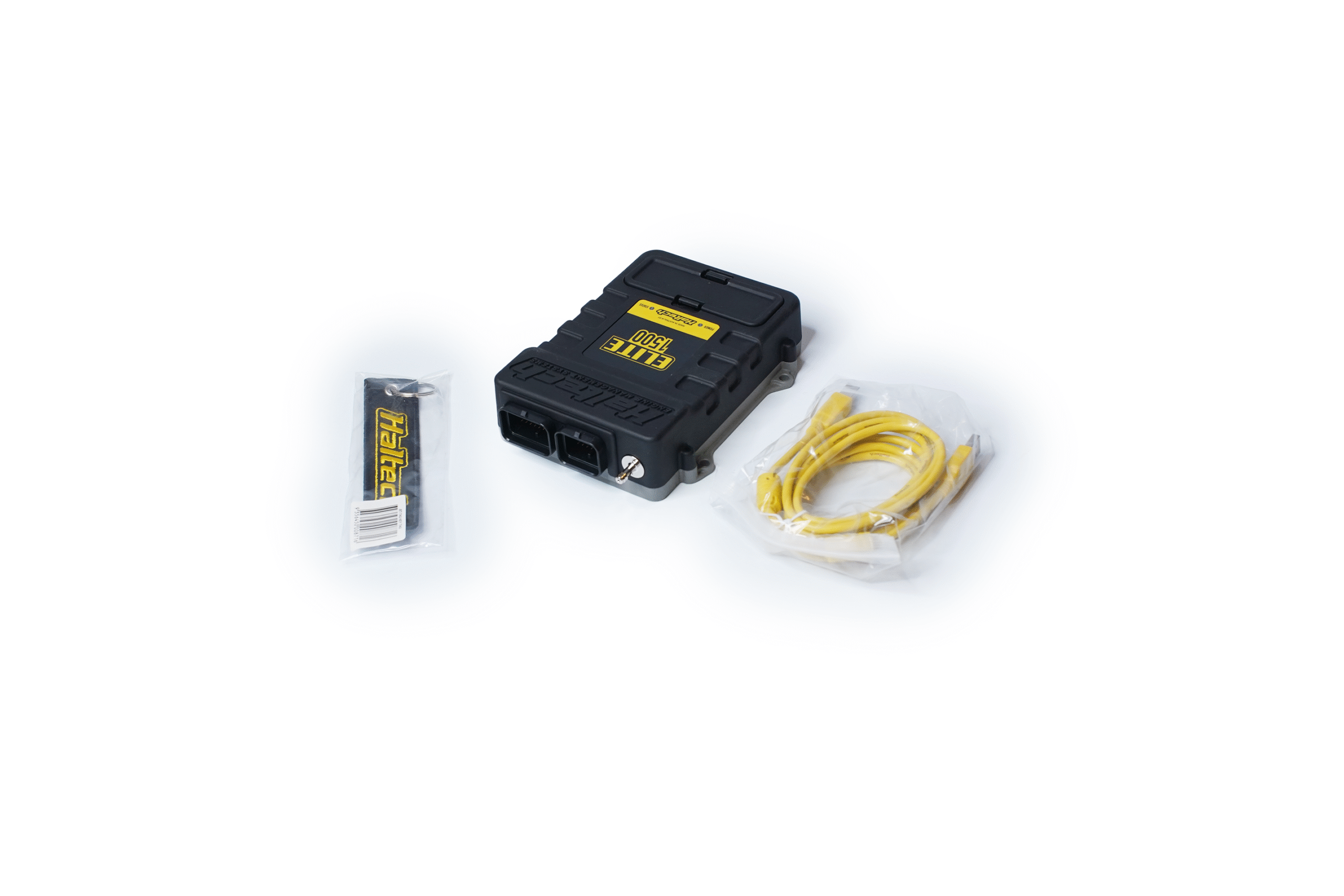

Included

• Elite 1500 ECU unit (HT-150900)

• USB programming cable

Note: Wiring, sensors, and accessories sold separately. For off-road/competition use only.
