Description

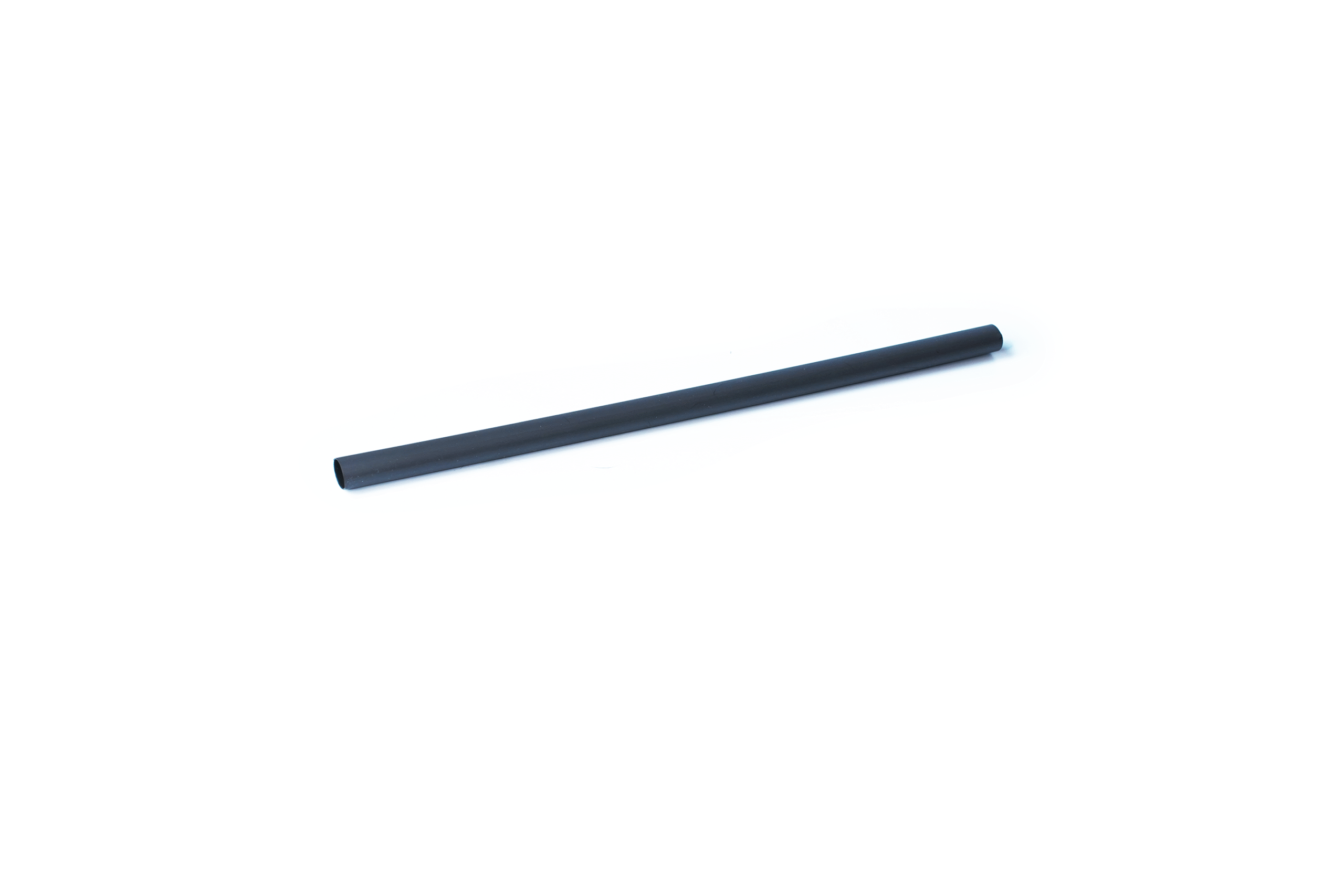

ES3 – Glue Lined Shrink Tube
The ES3 glue lined shrink tube is engineered for motorsport electrical systems where strength and environmental protection are essential. With a 3:1 shrink ratio, this tubing shrinks from 3/16″ (4.8 mm) down to approximately 1/16″ (1.6 mm), ensuring a tight fit around splices, terminals, and connectors. The internal adhesive lining flows when heated, bonding to wires and insulation to create a watertight, vibration-resistant seal.
Technical Data:
-
Size (as supplied): 3/16″ (4.8 mm)
-
Recovered Size: ~1/16″ (1.6 mm)
-
Shrink Ratio: 3:1
-
Wall Type: Dual wall (polyolefin outer, adhesive inner)
-
Operating Temperature: -55°C to +125°C continuous
-
Adhesive Activation: Melts and flows at ~90–110°C
-
Full Recovery Temperature: ~120–135°C (apply heat with a standard heat gun)
-
Environmental Protection: Resistant to moisture, dust, and automotive fluids
-
Application: Motorsport wiring harness construction, repairs, splicing, and sensor sealing
Each tube is supplied in 12″ pre-cut lengths to reduce shipping costs and provide workshop-ready convenience.
Factory Part Number: ES3
