Description

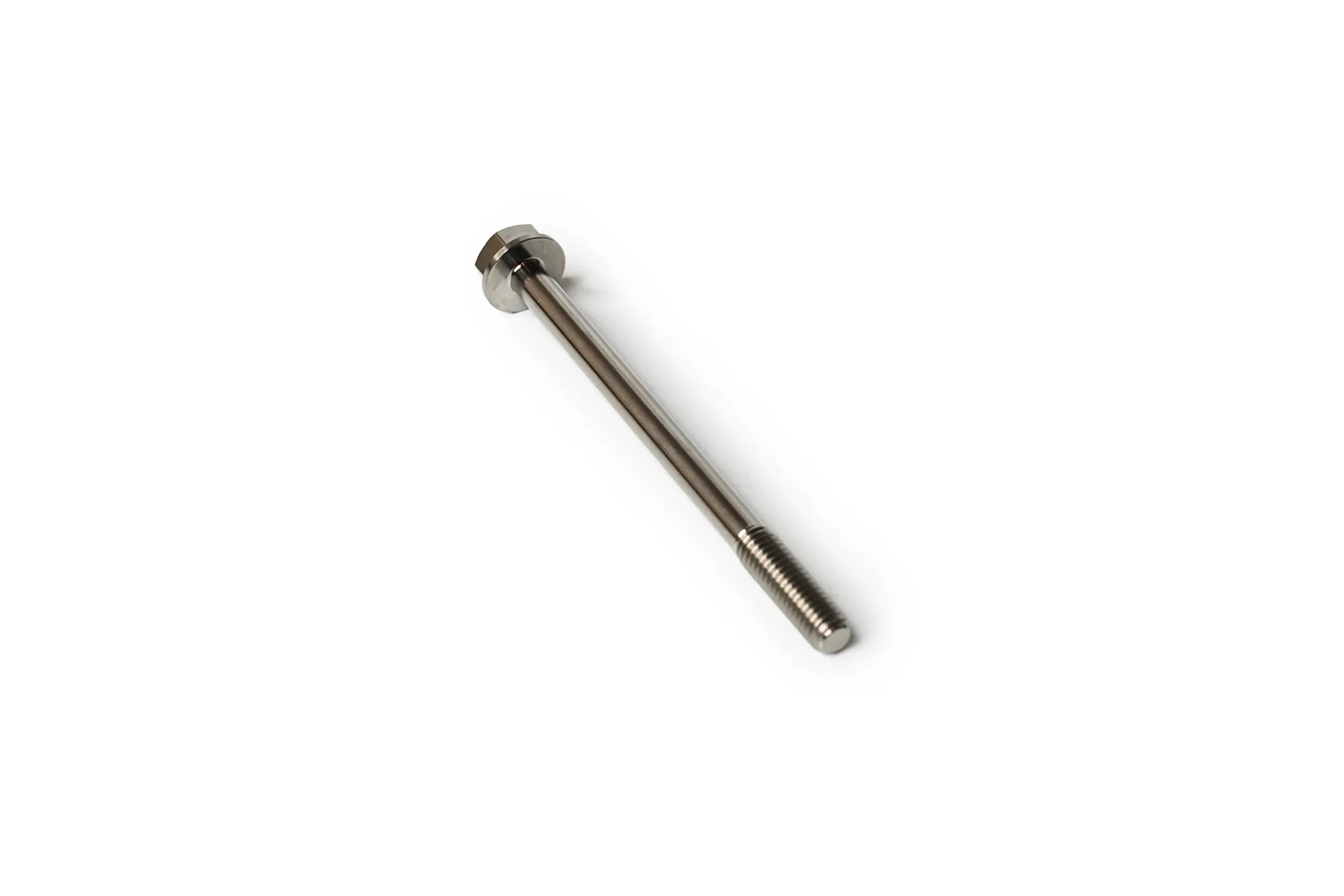

Designed in house and machined from solid Grade 5 titanium (Ti-6Al-4V) bar with rolled threads.
Thread: M6 x 1.0
Body Length: 80mm
Grip Length: 60mm
Thread Length: 20mm
Head Size: 10mm
Head Type: Hex flange
Material: Grade 5 Titanium (Ti-6Al-4V)
Strength Equivalent: Class 9.8 steel (900 MPa tensile)
Weight: approximately 44% lighter than an equivalent steel bolt
Sold individually.
Installation: Tef-Gel is recommended on all threads and contact surfaces. Titanium will gall and cold-weld to aluminum if installed dry. When using Tef-Gel or any thread lubricant, torque to the factory specification x 0.8 to achieve the correct clamp load.
Disclaimer: This product is intended for racing use only and is not an OEM replacement. Titanium fasteners have a higher fatigue rate than factory steel hardware and should be inspected regularly. Racing History Company takes no responsibility for failures, damage or injury resulting from the use of this product.
Factory Part Number: 95701-06080-08
