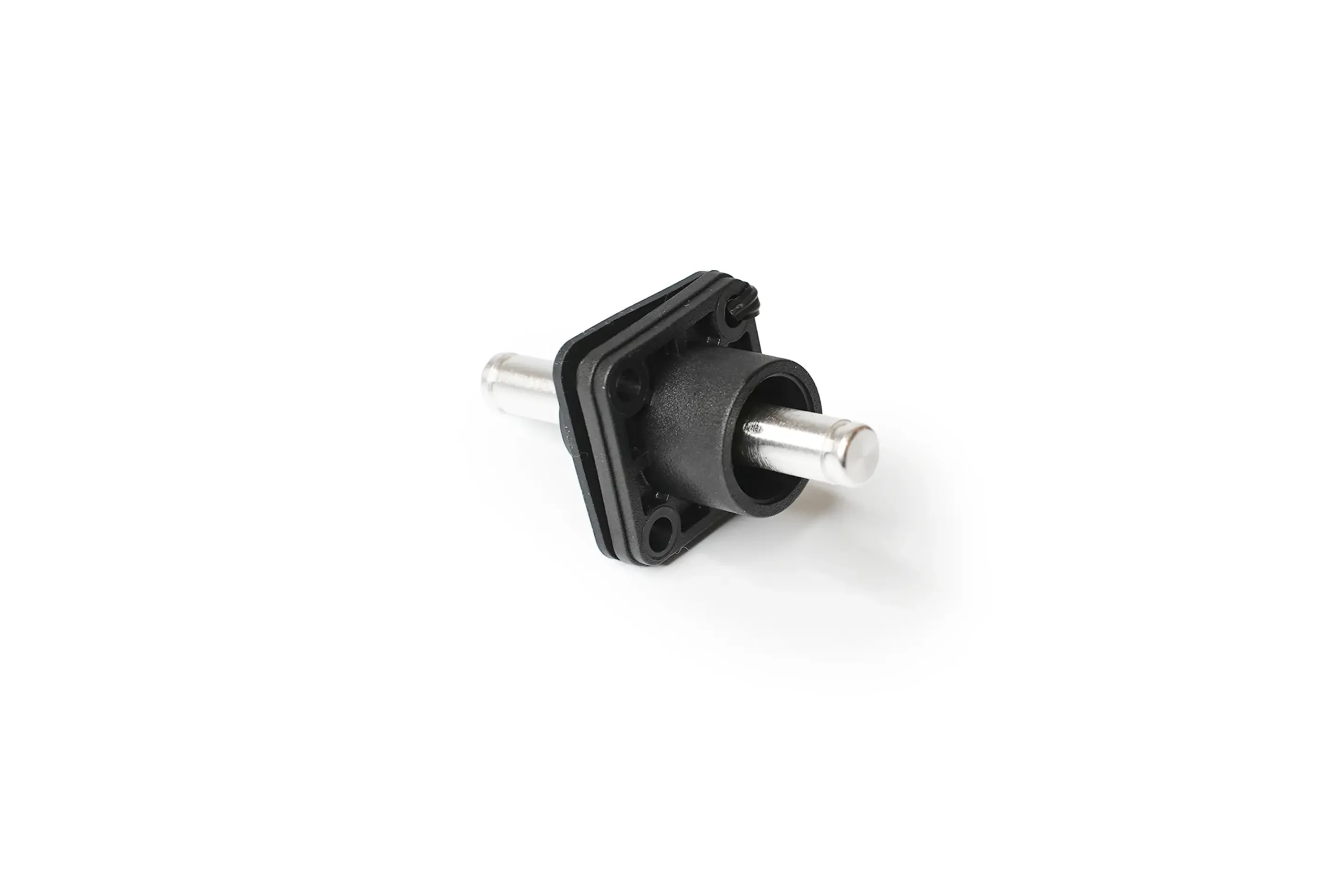

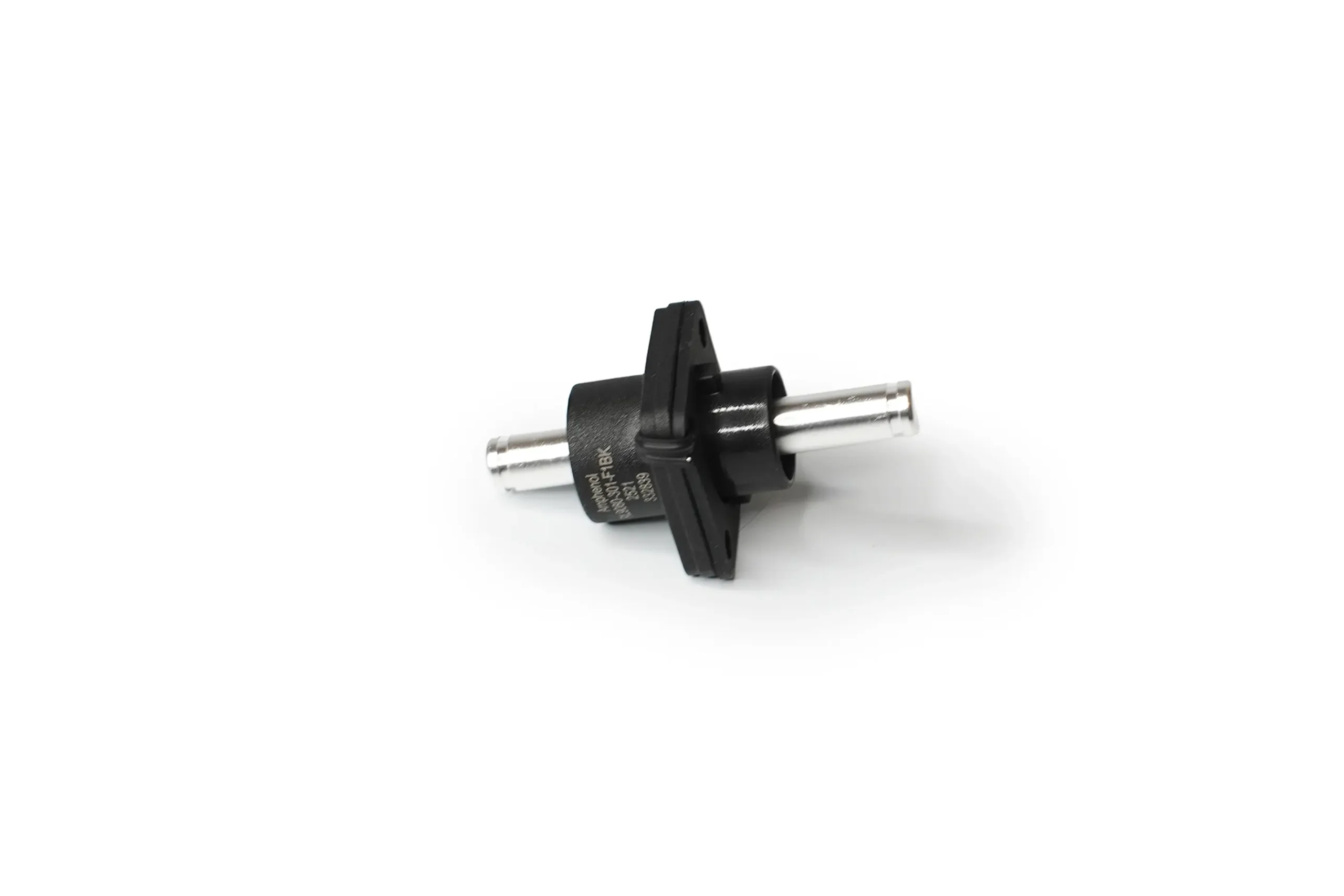

Radlok 8mm Bulkhead Stud Connector Black
8mm Both Sides A genuine Amphenol RADLOK bulkhead connector with an 8mm RADLOK interface on both sides. Mounts through a firewall, bulkhead plate, or enclosure panel and presents a 8mm Radlok-compatible stud on each face — engine bay side and interior side both accept standard 8mm Radlok cable ends for tool-free connect and disconnect without ring terminals or exposed hardware on either side. Designed for battery relocation builds and any application where a high-current circuit needs to pass cleanly through a panel. Both sides of the circuit stay on the Radlok system — consistent connection standard throughout, no transition to ring terminals, no bolted lugs at the firewall. A rubber sealing gasket is included for a tight, weather-resistant installation. The 8mm Radlok format is rated for 2 AWG wire at the connector. Your cable on both sides of the bulkhead must match — size the wire to the application before committing to a connector format.
Factory Part Number: N/A
