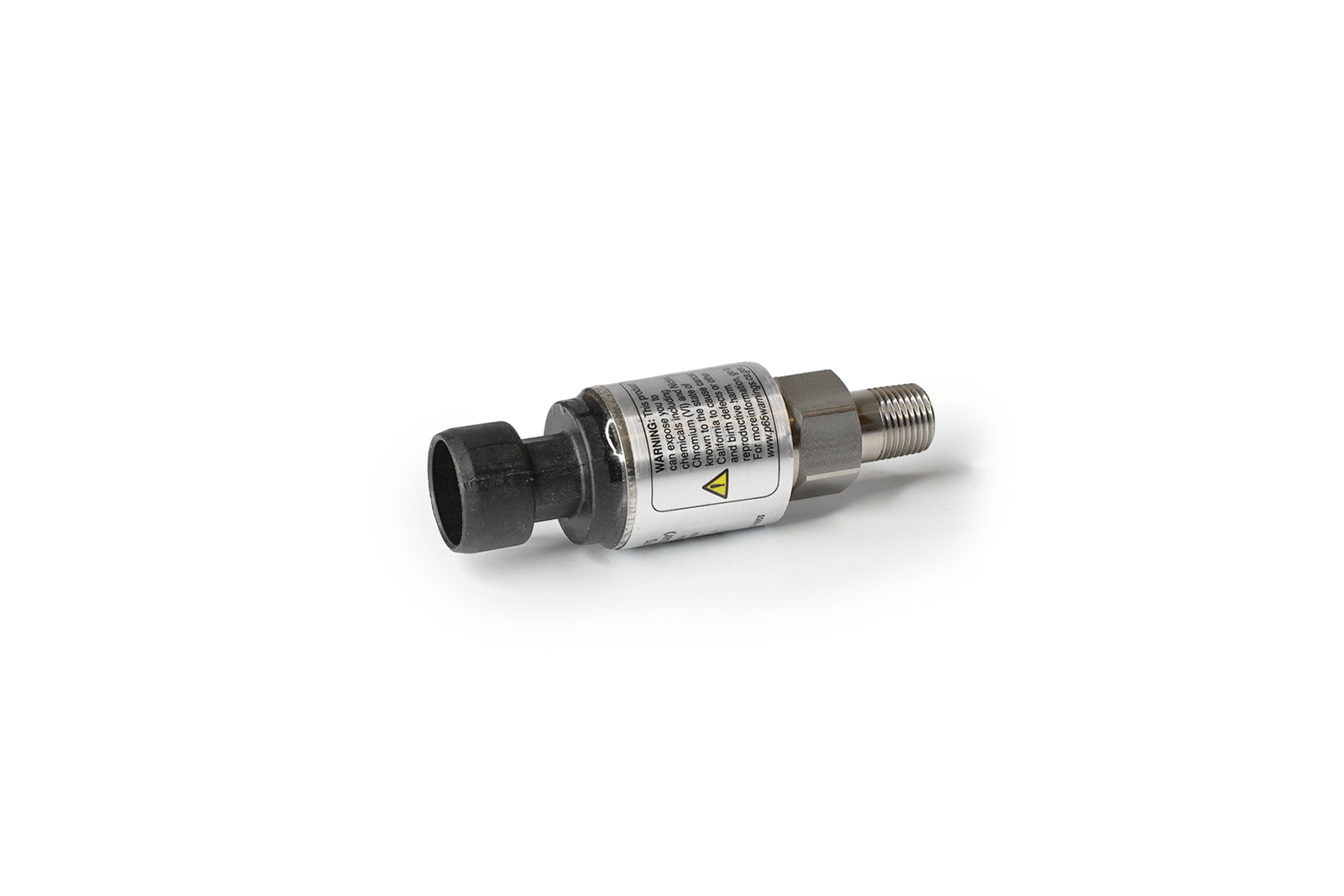

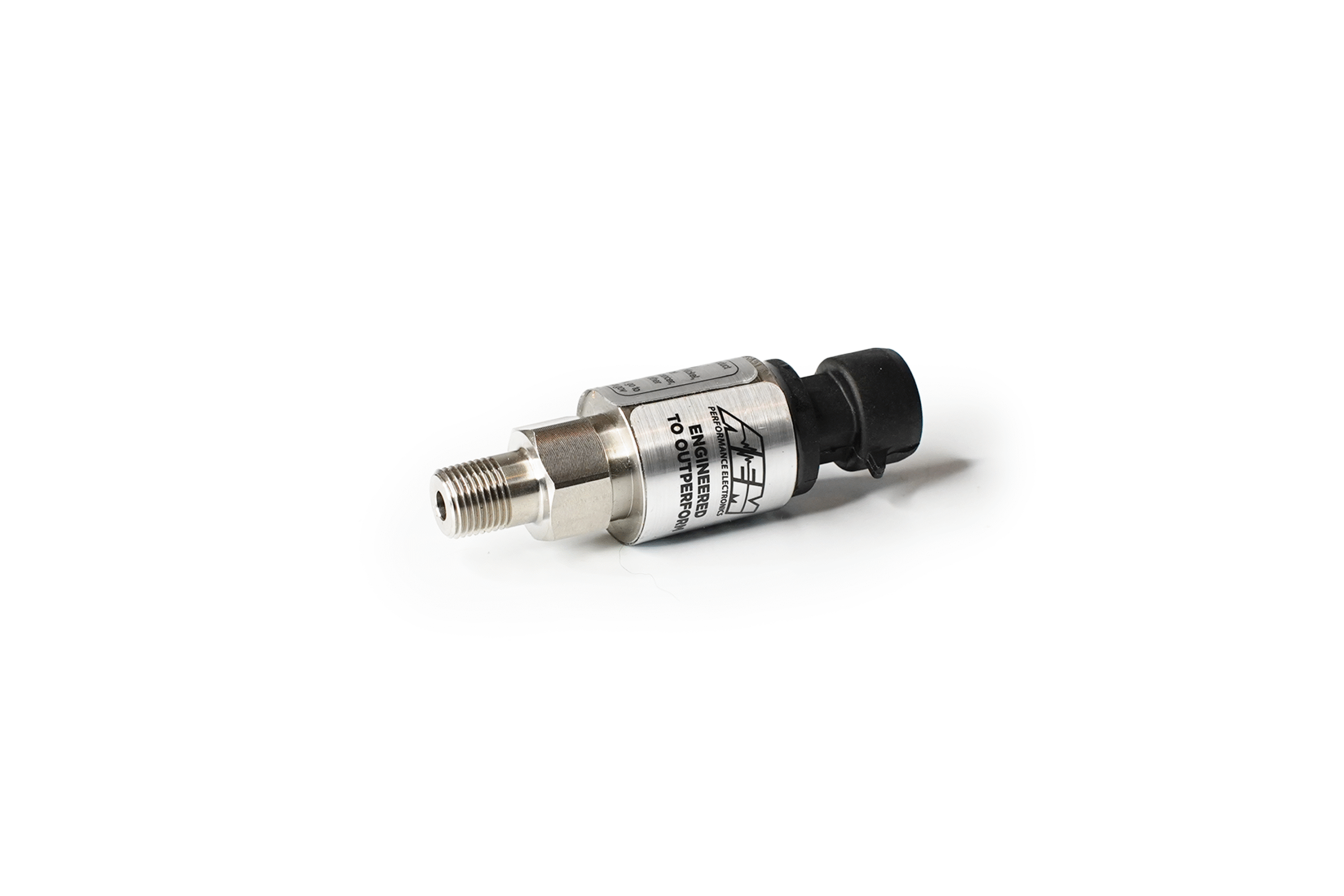

AEM 5 Bar Stainless MAP Sensor Kit
The AEM 30-2130-75 is a high-accuracy MAP sensor designed to measure up to 75 PSIa (5 bar absolute). Built from stainless steel with a welded housing, this sensor is engineered for durability and precise readings in high-pressure environments.
Key Features:
-
Measures pressure up to 75 PSIa (5 bar absolute)
-
±1% full-scale accuracy across temperature range
-
Stainless steel construction with 360° welded wetted area
-
Fast response time under 1 millisecond
-

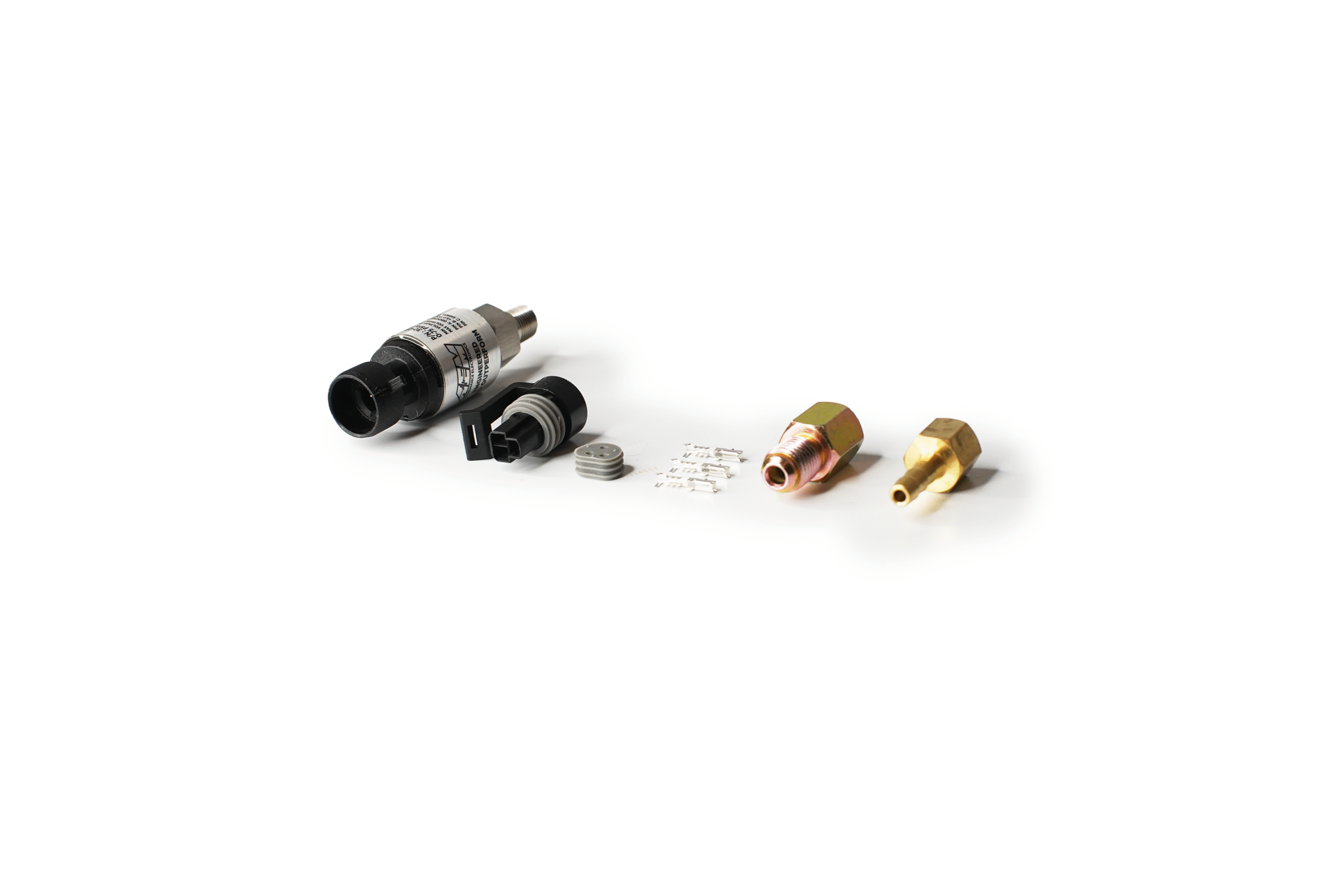

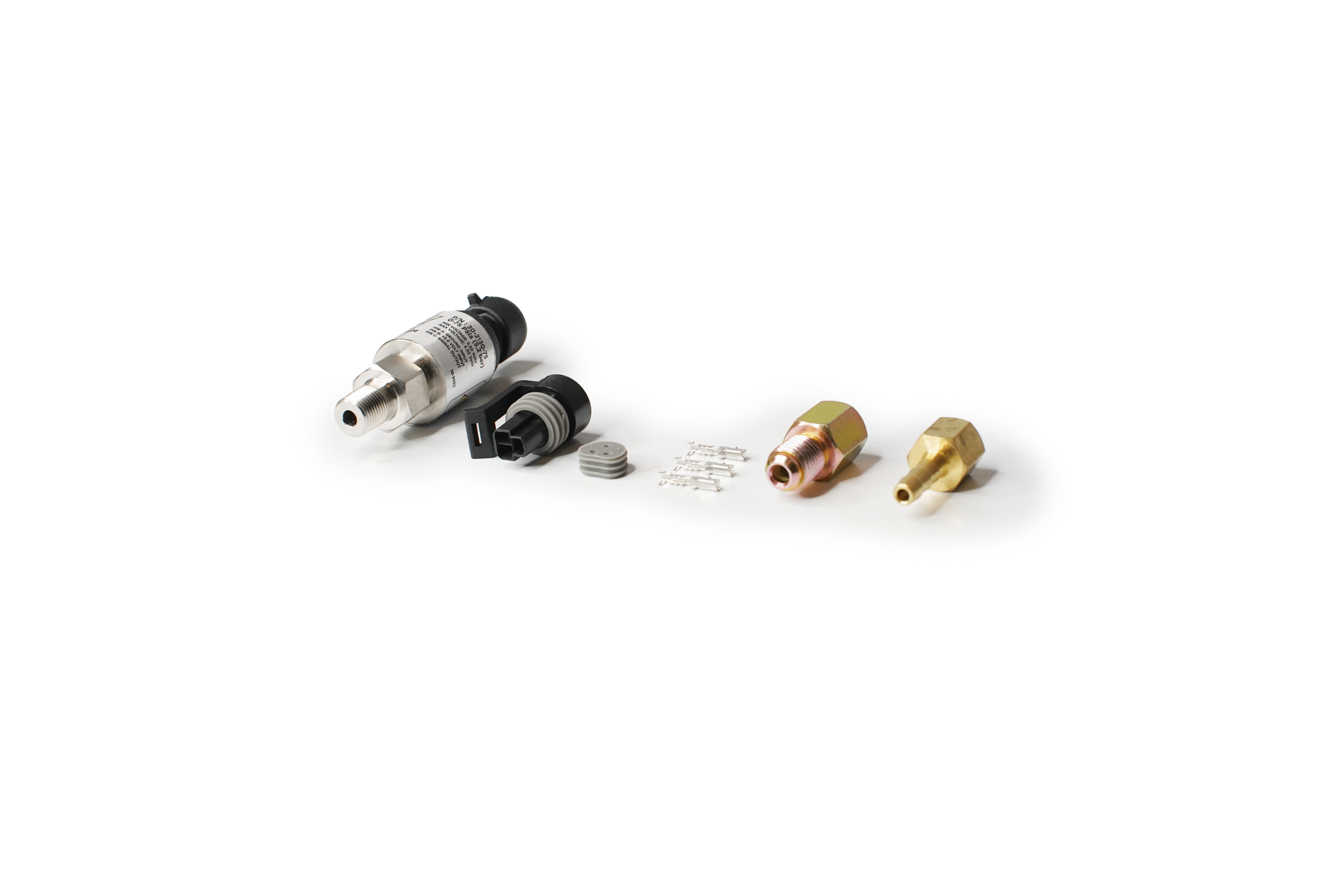

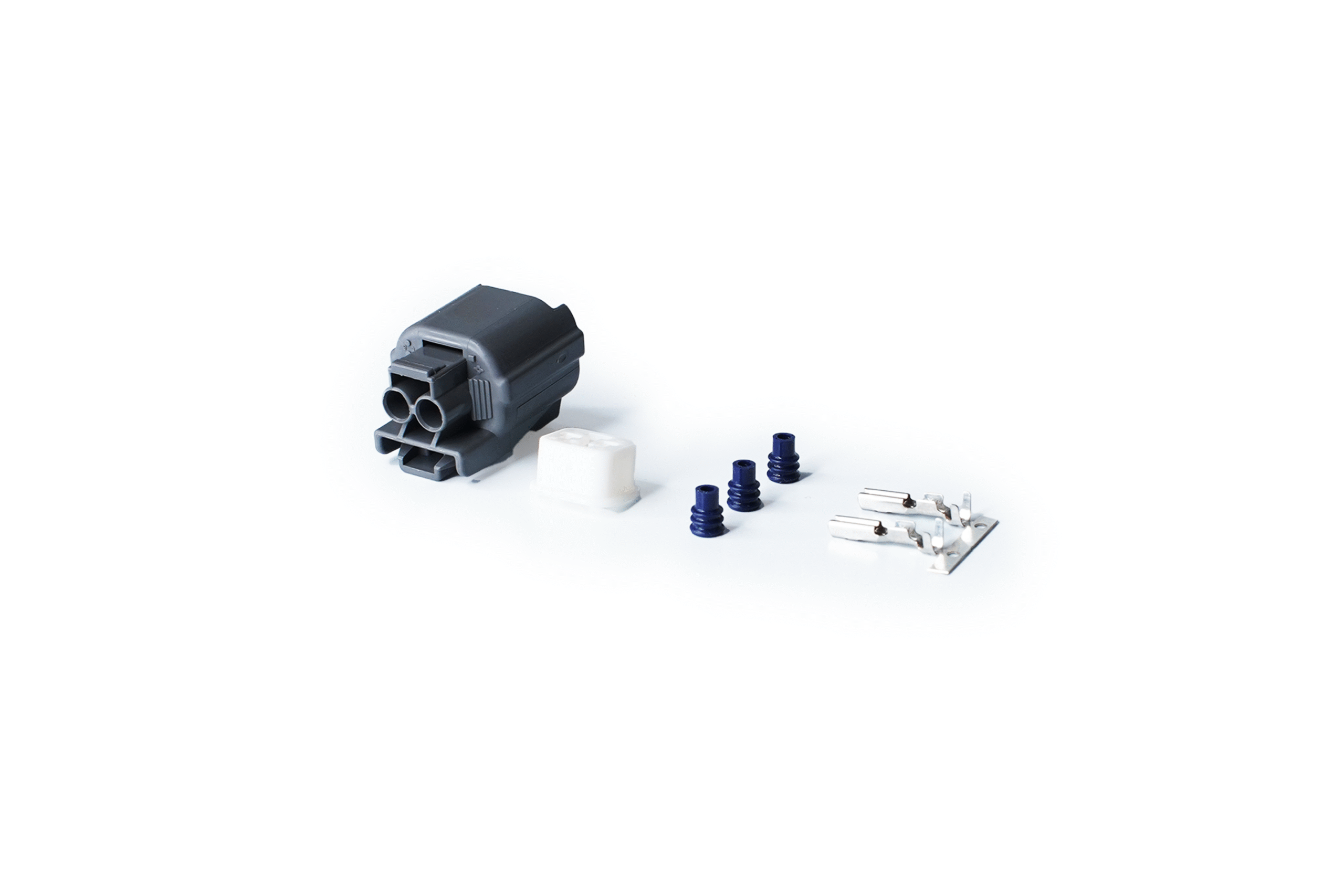

Weatherproof connector with pins and lock included
-
1/8″ NPT male thread with adapters for –4 AN and 3/16″ barb
-
Linear 0.5–4.5 V output for ECU integration
-
Wide operating temperature range: –40 °C to 105 °C
Uses / Applications:
-
Boost and vacuum measurement in turbocharged or supercharged engines
-
Accurate manifold pressure data for standalone and aftermarket ECUs
-
Data logging and calibration for dyno tuning or motorsport use
-
Can also be used to measure pressure in fuel, oil, or other compatible fluids
-
Suitable for both street and racing applications where reliability is critical
Factory Part Number: 30-2130-75
